Balsa USA 1/4 Cub
Specs
Type ¼ Scale Piper J-3 Cub
Wing Span 108 Inches (16” cord)
Wing Area 1610 Square Inches
Airfoil flat bottom
Wing Loading 18~20 Oz. / Sq. Foot
Fuselage Length 68 Inches.
Flying Weight 12 to 14 Pounds
Engine Size 60 to 1.08 2-stroke / 90 to 1.20 4-stroke / 20cc gas engine
Fuel Tank 12~24 Oz. (compatible with fuel requirements of engine)
Radio Equipment 4-Channel W/ 5 servos min.
Servo Requirements High torque 60~70 In/Oz. servos for rudder and elevator.

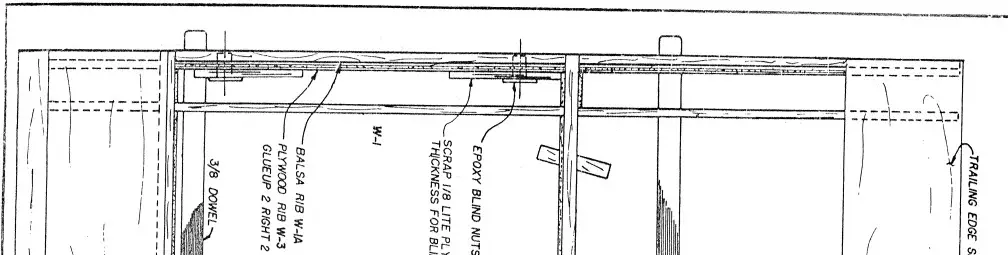

One of the easy way to identify this kit is with the 2 section wing where the wing has 2 dowls that slide into a rib on the cabin area. Please correct me if wrong, but I do not think it had a N# with the kit.
Balsa USA 1/3 Cub
Specs
Type 1/3 Scale Piper J-3 Cub
Wing Span 140 ¾ Inches
Wing Area 3051 Square Inches
Airfoil flat bottom
Wing Loading 22-26 Oz. / Sq. Foot
Fuselage Length 88 3/4 Inches.
Flying Weight 30 to 35 Pounds
Engine Size 45 – 70 cc gas engine
Please correct me if wrong, but I do not think it had a N# with the kit.
Balsa USA 1/3 Super Cub
Specs
Type 1/3 scale 2-place civil aircraft
Wing Span 140-3/4 inches (11-3/4 feet)
Wing Cord 21 inches
Wing Area 3051 Sq. inches
Airfoil Flat Bottom
Wing Loading 22 ~ 26 Oz / Sq. Foot.
Tail Span 38 inches
Flying Weight 30 ~ 35 Lbs
Fuselage length 88-3/4 inches
Fuselage Width 9 Inches (in cabin area)
Height 27 inches (flight ready)
Engine Size 2.7 cubic inch (45cc) to 4.27 cubic inch (70cc)
Radio Gear 5-Channel W/ 7 Servos min. (150 Oz Torque min.)
Please correct me if wrong, but I do not think it had a N# with the kit.
GreatPlanes Electric Cub
Specs
Wing Span 58 1/4 inches
Wing Area 472 1/2 Sq. inches
Wing Loading Oz / Sq. Foot.
Flying Weight 3.25 3.5 Lbs
Fuselage length 37 inches
Engine Size speed 600
GreatPlanes came out with the original Electric Cub that had a brushed geared system in it. It was a 3 channel with throttle, ruder and elevator. Had a N# of NC 42257
They came out with a 2nd version that had Ailerons with it.

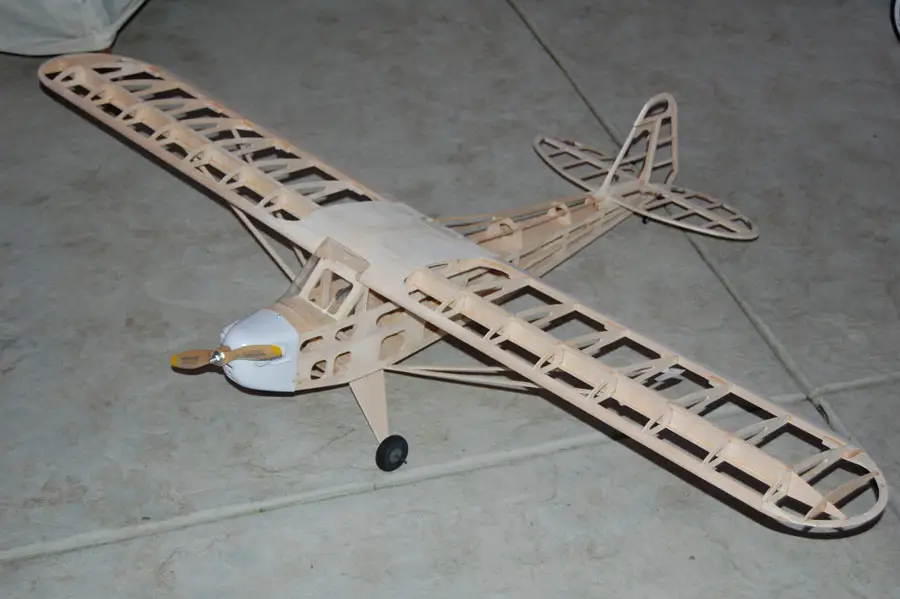

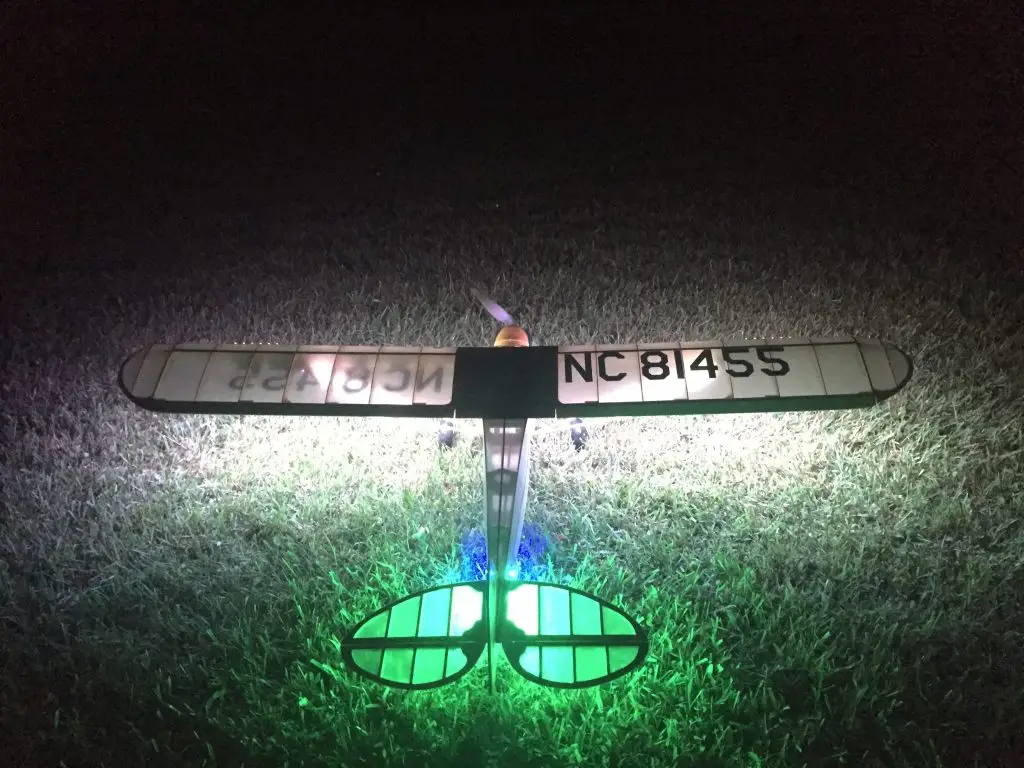

I have had both and love the one with Ailerons the best. Have mine setup with nights for night flying and is covered in clear to see the bones of the plane.

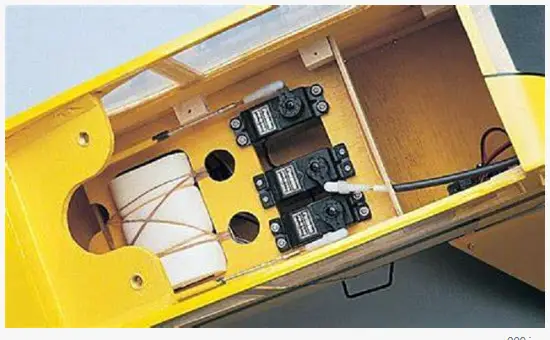

GreatPlanes 20/40/60 Cub
Specs
Size 20
Wing Span 61.2 inches
Wing Area 525 Sq. inches
Wing Loading Oz / Sq. Foot.
Flying Weight 3.75 – 4.5 Lbs
Fuselage length 39.2 inches
Engine Size 2-S .15 – .25 4-S .20-.26
Specs
Size 40
Wing Span 76.5 inches 61.5 clipped
Wing Area 820 Sq. inches 653 clipped
Wing Loading Oz / Sq. Foot.
Flying Weight 6.5 – 7.5 Lbs
Fuselage length 49 inches
Engine Size 2-S ..40 – .60 4-S .48 – .70
Specs
Size 60
Wing Span 90 inches 83 clipped
Wing Area 1123 Sq. inches 1037 clipped
Wing Loading Oz / Sq. Foot.
Flying Weight 9.5 – 12 Lbs
Fuselage length 56.5 inches
Engine Size 2-S .60 – .90 4-S .70 – .91

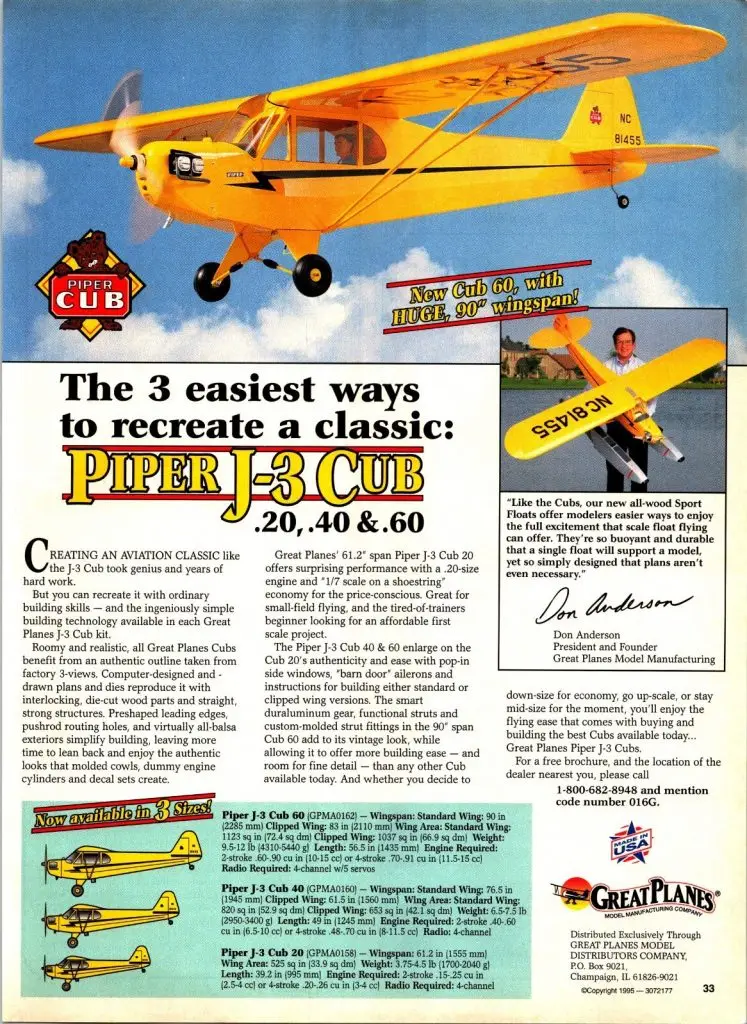

GreatPlanes had three sizes, so it made it easy to pick the one you wanted. Had a N# of NC 81455
Two cubs that get mixed up the most is the GreatPlanes 40 size and the Goldberg cub. If you look to the right, you will see how the back part of the wing mount is for the GreatPlanes If your wing mount is different then look at the Goldberg cub and see if it matches.
Goldberg Cub
Specs
Wing Span 76.5 inches 67.5 clipped
Wing Area 744 Sq. inches 648 clipped
Wing Loading Oz / Sq. Foot.
Flying Weight 7 – 7.5 Lbs
Fuselage length 48 inches
Engine Size 2-S .40 4-S .90
This kit has some history behind it. . Had a N# of N4730C
Two cubs that get mixed up the most is the GreatPlanes 40 size and the Goldberg cub. If you look to the right, you will see how the back part of the wing mount is for the Goldburg Cub If your wing mount is different then look at the GeartPlanes 40 cub and see if it matches.
I have this plane and love it.
Just a few cubs, Feel free to email me of any that need to be added. I hope to keep growing this page out.
